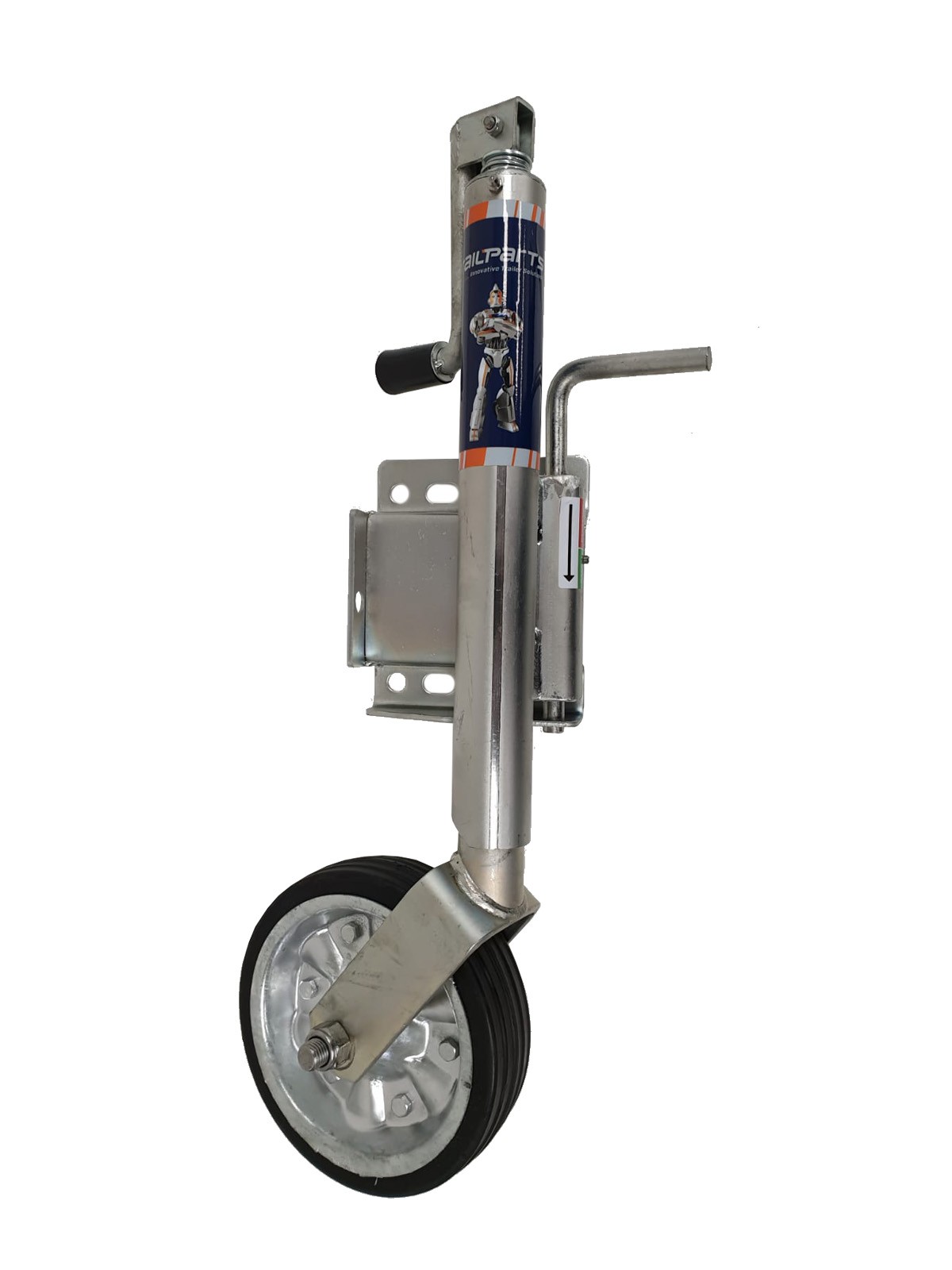

Vertical pin, 8" Alloy wheel, 250 kg

Item code: JZV8H


Sign in for pricing

The Trailparts V-series swivel bracket has a two point engagement mechanism that resists sideways load. Further improvements are the swivel pin – which remains static in the bracket during swiveling(no more caught fingers) – and the short distance between the two parts of the swivel bracket (no more bent pins).

Rubber tyre designed so it won't slip on the rim under heavy load or skid on stones on concrete and extra width means it's is easier to push on soft and uneven surfaces.

  • 8" x 75mm rubber tyre on Galv Rim
  • Zinc plated finish
  • Compact foldaway heavy duty handle with 16mm shaft
  • Two point engagement mechanism that resists sideways load
  • Swivel pin remains static in the bracket during swiveling (no more caught fingers)
  • No more bent swivel pins due to the short distance between the two parts of the swivel bracket
  • 250kg load capacity
  • 270mm height adjustment
  • 365mm from ground to centre of swivel bracket
  • Supplied with multi hole bracket to suit both bolted or U-bolt mount
